Numerical Data

R Packages

  • csucistats
  • tidyverse

Motivating Example

Summary Statistics

  • Summary Statistics

  • Numerical Statistics in R

  • Data Visualization

  • Transformed Data

  • Scatter Plots

What is numerical data?

trashwheel$PlasticBottles
#>   [1] 1450 1120 2450 2380  980 1430  910 3580 2400 1340  740  950  530  840 1130
#>  [16] 1640 1350 1640 1730 5960 2170 1930 3200 2500 2140 1630 3640 1430  570 4800
#>  [31]  550 2240 4220 1400 2820 1900 3650  760 1250  880 1800 1370  550  640 1160
#>  [46] 1570 1340 1740 2870 3120 2780 2240 2550 1470 1240 1150 2850  960  870 1340
#>  [61] 2630 1850 2830 1740 2780 1260 2340 3240  940  830  960  870  920 1130 1060
#>  [76]  740  950 2340 2660 2430 2690 1540 1240 2870 2450 1830 2360 2640 2840 2640
#>  [91] 3070 2820 2640  870 3220 1980  410  640 2730 1360  760 1240  800 2540 2130
#> [106] 2670 1940 2140 1960 1640 1850 2370 2530 2720 2250 3240 3530 2340 2460 1340
#> [121]  950 2240 3050 1630 1120 3340 3560 2460 3860 3230 3760 3640 4230 3590 3740
#> [136] 4200 3840 4350 3960 4150 4450 3460 2850 3560 4130 4350 4420 2130 2450 2300
#> [151] 2850 2640 3250 2530 2780 2740 2530 1876 2340 2244 2980 3460 1840 1360 1880
#> [166] 2460 2260 2890 2140 2570 2030 1940 1870 1920 1920 2230  980  650  430  390
#> [181]  490  210  560  470  390  460  530  460  340  360 2540 2870 2230 2340 2560
#> [196] 2340 2480 2540 2980 3250 3340 2850 3220 2110 3670 2890 1460 3240 3530 2760
#> [211] 2980 2430 1500 1270 1340 2780 2910 2760 2950 2550 2720 2540 2370 2250 1260
#> [226]  950 1020 2250 1130 1240 1950 1460 2210 2470 2150  970  840  790  750  810
#> [241]  790  670  710  730  820  760  670  730  750  820 1580 2130 2350 2460 1220
#> [256]  950  400 1050 1480 1300 1650 2130 2340 1890 1420 1280 1140  870  940  620
#> [271] 1560 1720 1890 1760  890  710  620  780  540  670  820  540  730  910  710
#> [286] 1750 1320 2740 1120 2100 3110 1200 1390  940 1220 1960 2150 2380 1440 1080
#> [301] 1840 2100 1500  660  590 1200 2610 1820 1080  790 1240  780  480  300  990
#> [316] 1110  580 2200 1900 2800  840  680  300  240 1015 2150  580 1400  800 1110
#> [331] 1980 1040  940  600  460  980 1880  900 1740 1140 2040 2800 1800 3300 1880
#> [346] 2000 2680  950 3700 1900 3600 2400 4400  980 1980 3600 2200 2800 4200  800
#> [361] 1400 1800 2210  980 2800 1900 2780 2440 3400  920 1260 1980 1000  960  640
#> [376]  860  590 1800 3600 2300 3900 2900 1850 3400  980  750  500 3200 3800 1850
#> [391] 2800  980 3200 2800 2640 1200  510  660  480 2900 2300 1980 1040  900 3400
#> [406] 1800 3000 2800  950 3800  800  760  540  340  600  480 2100 1840 1100 2650
#> [421] 1900  900 1880 1240 3000 2300 1400 2050 3250 2100 2450 4050 3800 3000 2200
#> [436] 3500 1800 1250 2200 1640 1080 1790 2080 1600 2200 2000 1200  980  800 1200
#> [451] 1800 1440 1600 2400 1900 2100 1200  720  800 2200 1600 1000 3000 2700 2300
#> [466] 1900 5800 1800 2200 3400 4400 3400 2500 1600 1200 1040 4400 4800 1800 3600
#> [481] 3000 4200 1400 2800 1800 3400 2600 3300 4100 1800 3500 2900  850  680 3100
#> [496] 1750  980 2800 1200  840 1040  500  800  640  900  660  750 3800 2900 1800
#> [511] 2700 4200 3000 1200  600 4400 3100 2800 1100 3400 2800  800 1800  540 3300
#> [526] 2800  900 2100 3200 1440  800  540 2900 2000  960 3200 1250 2900 2100 3600
#> [541] 1400 3900 3000 1800 2700 2400 2900 1400 3900 4200 2800 1900  960  640  750
#> [556]  500 3500 2900 2100 3200 1800 1500 2100 1000 2900 1600 2100 1700 2400 3600
#> [571] 2700 2900 1800 2200 3000 2100 1000 2700 2200 3100 3400 4000 2100 1900 2300
#> [586] 3200 1200 3400 2100  980  540 1100  750 1800 2300 3400 2700 3000 3800 4200
#> [601] 1800 2000 3300 4200 1200 2200  850  980  300  450   80 1800 2200 3400 3100
#> [616] 2600 1800 1200 2200 1400 2100 1600 2000 3200 2100 1400  880 2000 1200 1950
#> [631] 9540 8350 8590 7830 8210 9830 9240 9540 8230 7540 8490 9610 7960 8870 7420
#> [646] 8250 8472 7530 2340 2210 2670  657 2290 2110 7340 9230 1020  900 1140 1350
#> [661] 1200 1090  920 3150 6970 9100 8400 6500 4400 3600 4000 3700 4057 8800 6800
#> [676] 5900 7500 8000 4400 6600 3800 4800 4400 5200 6400 5900 4800 5600 7200 4400
#> [691] 5400 4800 6700 6000 6800 5950 7200 6400 5300 4900 4400 5000 4900 4800 5800
#> [706] 3600 4200 5000 5400 6400 4000 4300 5100 3900 2700 3000 4100 3900 4400 4900
#> [721] 3600 4500 5000 5400 3400 4800 3800 2900 3200 4200 2900   NA 3400 4100 3900
#> [736] 4900 3400 5100 4200 2900 3800 3200 4000 1150 2320 3450 1490  920 1010  680
#> [751] 1800 2700  950  103 1850 1200 1050 1860 1180 1050 1420 1800 1500 1200  860
#> [766]  640 1400  980 2100 1100 2400 1500 2200 1200 2000 1800 1000 2100 2400 2700
#> [781] 3000  980  240  840 1800 1000  500   12 2400 1000 1800  300 2100 2400 1200
#> [796] 1800 2100  280  480  150 1400  980   40  640  800 1000  810  500 1800  840
#> [811]  500 1500  480 1000 1200  450  280  150    0    0 2100 1800 1400  980 3000
#> [826] 2400 1100  340 1200  600 2300 1200 3000 4200 1800  980 2100 3200 1050 2700
#> [841]  980 1400  800  640  240 2100 2800 1600 1200 2200  980  540  320  270 1200
#> [856]  360  120  480    0 2400 3200 2500 1800  250  240  640  180  540    0    0
#> [871] 2800 1600  980  480  720    0  360 2100 2900 2100 1800 2900 3200 1800 1600
#> [886] 2800 1200 2100 2500 1800 1600 2100 1200  980 2500 1900 2100 1200  900  800
#> [901]  480  720 1600 2400  800  500  640  900 1400 2100 1900  960 2400 1800 2700
#> [916] 1500  930 2100 3000 1600 1200 4100 5400 4400 5000 3400 4900 2500 2700 1300
#> [931]  800  440 2100 3200 1100  800  540 4100 3300 1500  850  440 2800 1200 1400
#> [946]  880  750 1800  400   10 1400  600 2500 1100 2300 1000 1300  500  700   20
#> [961]    0 1800  680 2800 3300 2900 1800 2800 1000 2500  950  360    0 3400 2700
#> [976] 3200 2800 1600 2900 2000 2500 1400  800 1500 2100 1400  980 1800  500 1200
#> [991]  180    0    0

Summary Statistics

Summary statistics are used to describe the distribution of data.

Central Tendency

Central tendency is a statistical concept that refers to the central or typical value around which a set of data points tends to cluster. It is used to summarize and describe a data set by identifying a single representative value that provides insights into the data’s overall characteristics.

Variation

Variation in statistics refers to the extent to which data points in a dataset deviate or differ from a central tendency measure. Understanding variation is crucial for making informed decisions, drawing meaningful conclusions, and assessing the reliability of statistical analyses.

Minimum

The minimum (min) is the smallest value in the data.

Maximum

The maximum (max) is the largest value in the data.

Quartiles

Quartiles are three values (Q1, Q2, Q3) that divides the data into four subsets.

Q1

Q1 is the value signifying that a quarter of the data is lower than it.

Q2 - Median

Q2 is the value signifying that half of the data is below it.

The median also represents the central tendency of the data.

Q3

Q3 is the value signifying that 3 quarters of the data is below it.

Interquartile Range

\[ IQR = Q_3 - Q_1 \]

Range

\[ R = \mathrm{max} - \mathrm{min} \]

How to identify the quartiles?

  1. Sort the data
  2. ID Max and Min
  3. Find the amount of data the makes a quarter:
    1. \(K=N/4\)
  4. Create 4 groups using the sorted data
    1. group by data size
    2. If \(K\) has a decimal, the \(Kth\) value is quartile of each group.

Mean

Describe how you will find the mean of these numbers:

#> [1] 18 19 11 13 12

Mean

The mean is another measurement for central tendency.

\[ \bar X = \frac{1}{n}\sum^n_{i=1}X_i \]

  • \(n\): total data points

  • \(X_i\): data points

  • \(i\): indexing data

  • \(\sum\): add all from first (bottom) to last (up)

Variance

The variance is a measurement on the average squared distance the data points are from the central tendency.

\[ s^2 = \frac{1}{n-1}\sum^n_{i=1}(X_i-\bar X)^2 \]

Standard Deviation

The standard deviation is a measurement on the average distance the data points are from the central tendency.

\[ s=\sqrt{s^2} \]

Outliers

These are data points that seem to be highly distant from all other variables.

Numerical Statistics in R

  • Summary Statistics

  • Numerical Statistics in R

  • Data Visualization

  • Transformed Data

  • Scatter Plots

Numerical Statistics in R

Mean

mean(DATA$VAR)

Median

median(DATA$VAR)

Standard Deviation

sd(DATA$VAR)

Variance

var(DATA$VAR)

Quartiles

quantile(DATA$VAR, probs = c(0.25, 0.5, 0.75))

Max and Min

max(DATA$VAR)
min(DATA$VAR)

Summary Statistics

num_stats(DATA$VAR)

Mr. Trash Wheel

num_stats(trashwheel$PlasticBottles)
#>   min   q25     mean median  q75  max       sd     var    iqr missing
#> 1   0 987.5 2219.331   1900 2900 9830 1650.449 2723984 1912.5       1

Data Visualization

  • Summary Statistics

  • Numerical Statistics in R

  • Data Visualization

  • Transformed Data

  • Scatter Plots

Histogram

A histogram is a graphical representation of the distribution or frequency of data points in a dataset. It provides a visual way to understand the shape, central tendency, and spread of a dataset by dividing the data into intervals or bins and showing how many data points fall into each bin as a bar.

Histogram R Code

ggplot(DATA, aes(VARIABLE)) +
  geom_histogram(bins = X)

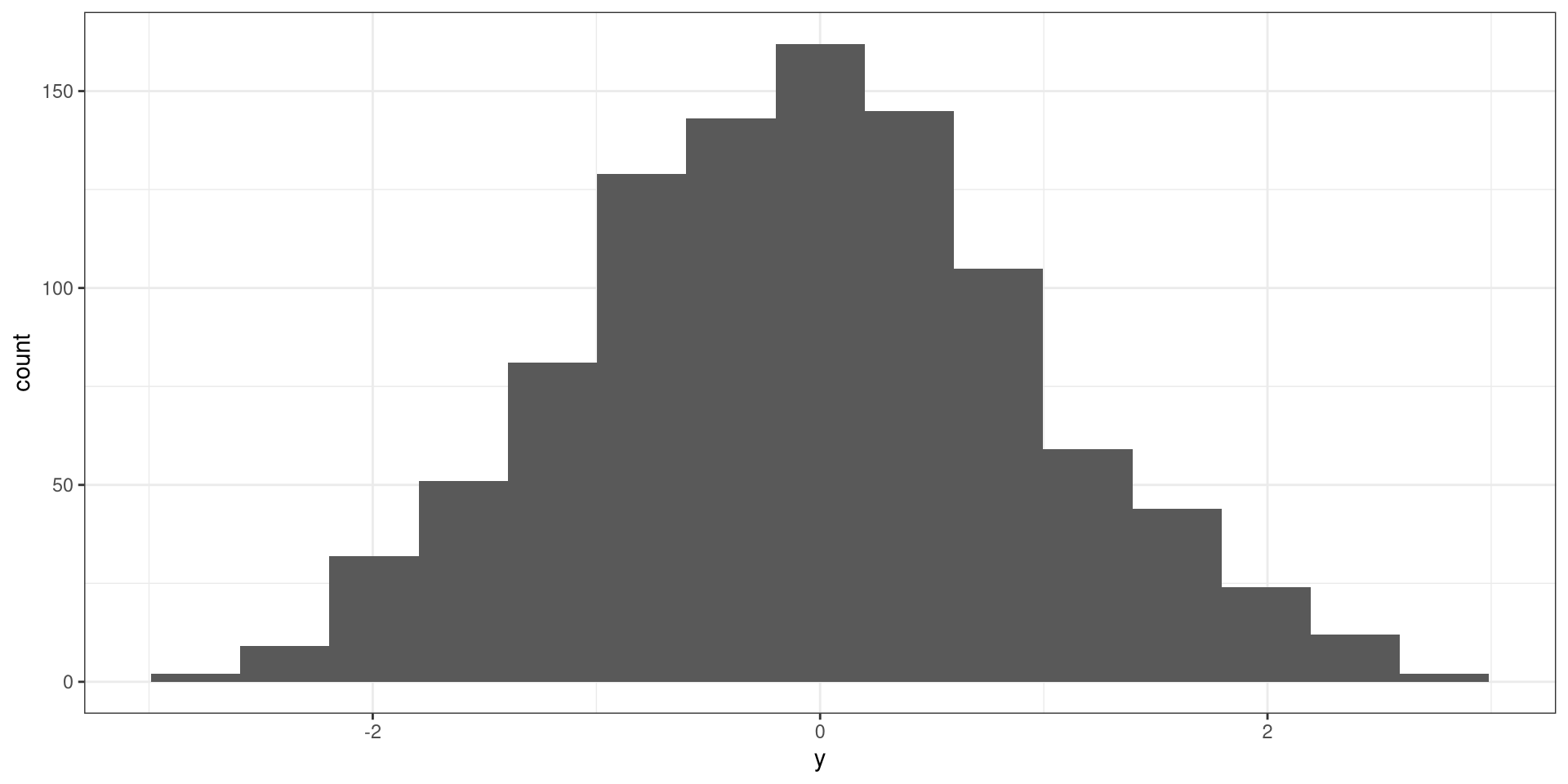

Histogram

Code
y <- rnorm(1000)
ggplot(tibble(y), aes(y)) +
  geom_histogram(bins = 15)

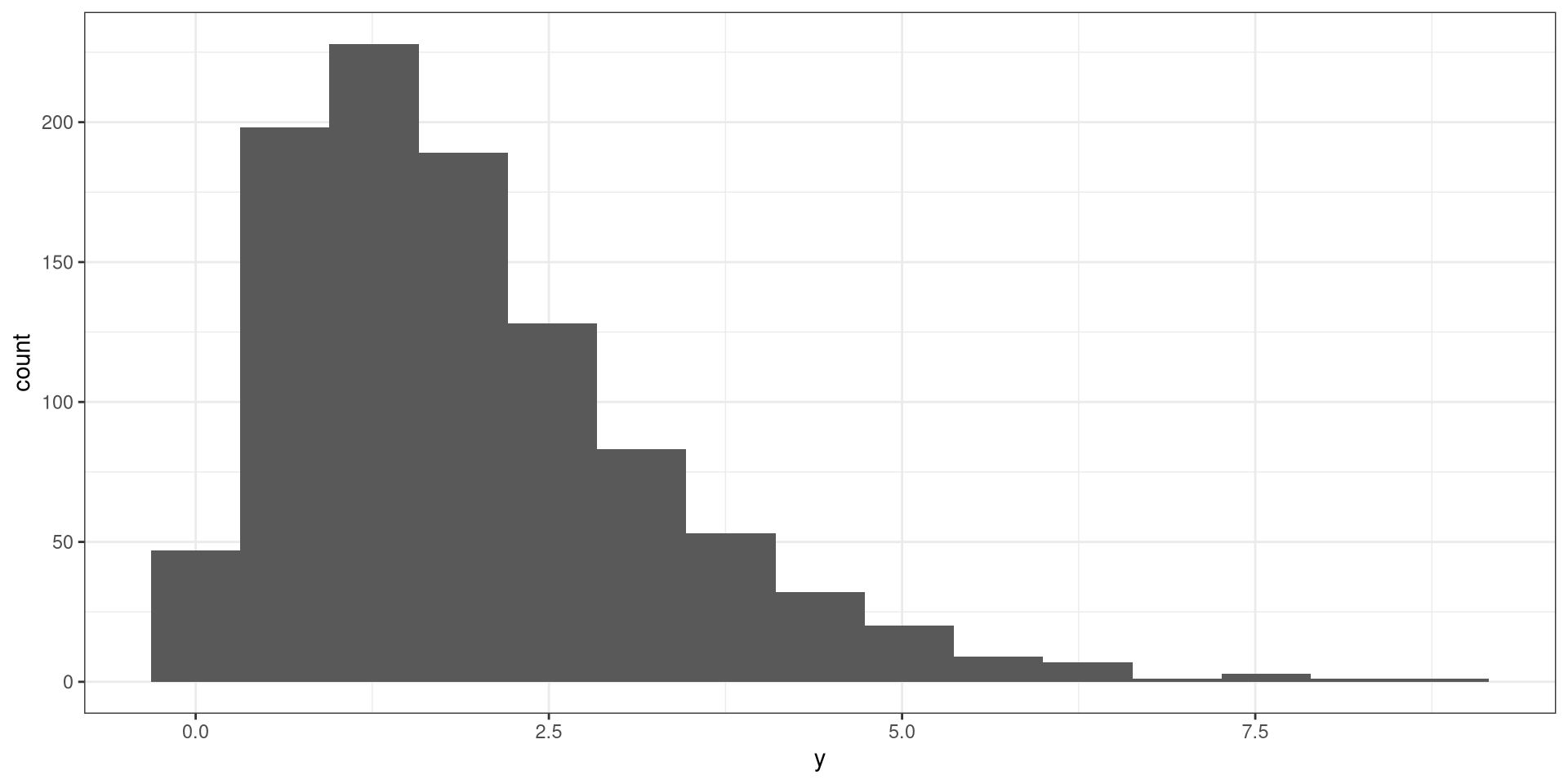

Histogram

Code
y <- rgamma(1000, 2)
ggplot(tibble(y), aes(y)) +
  geom_histogram(bins = 15)

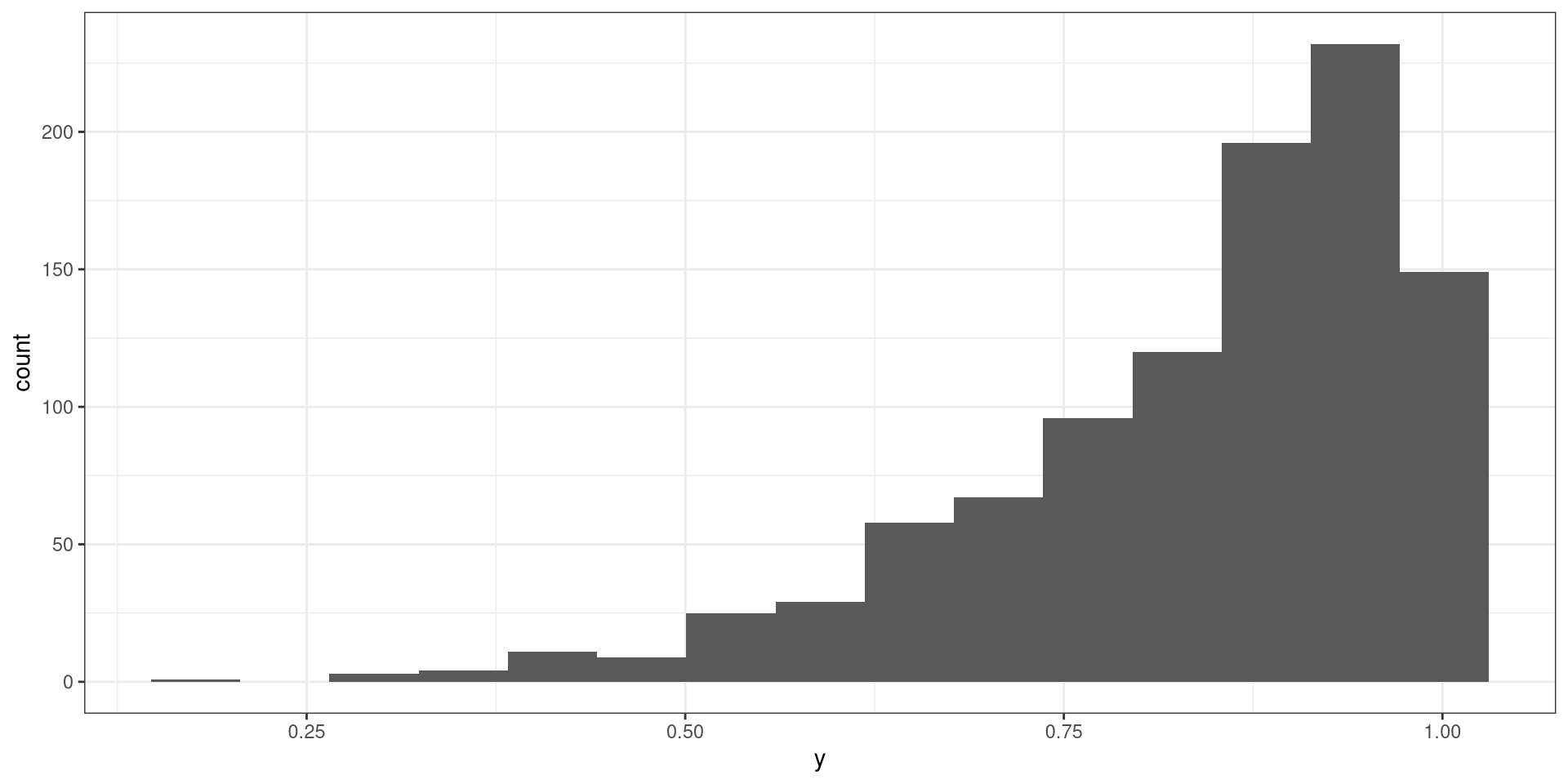

Histograms

Code
y <- rbeta(1000, 5, 1)
ggplot(tibble(y), aes(y)) +
  geom_histogram(bins = 15)

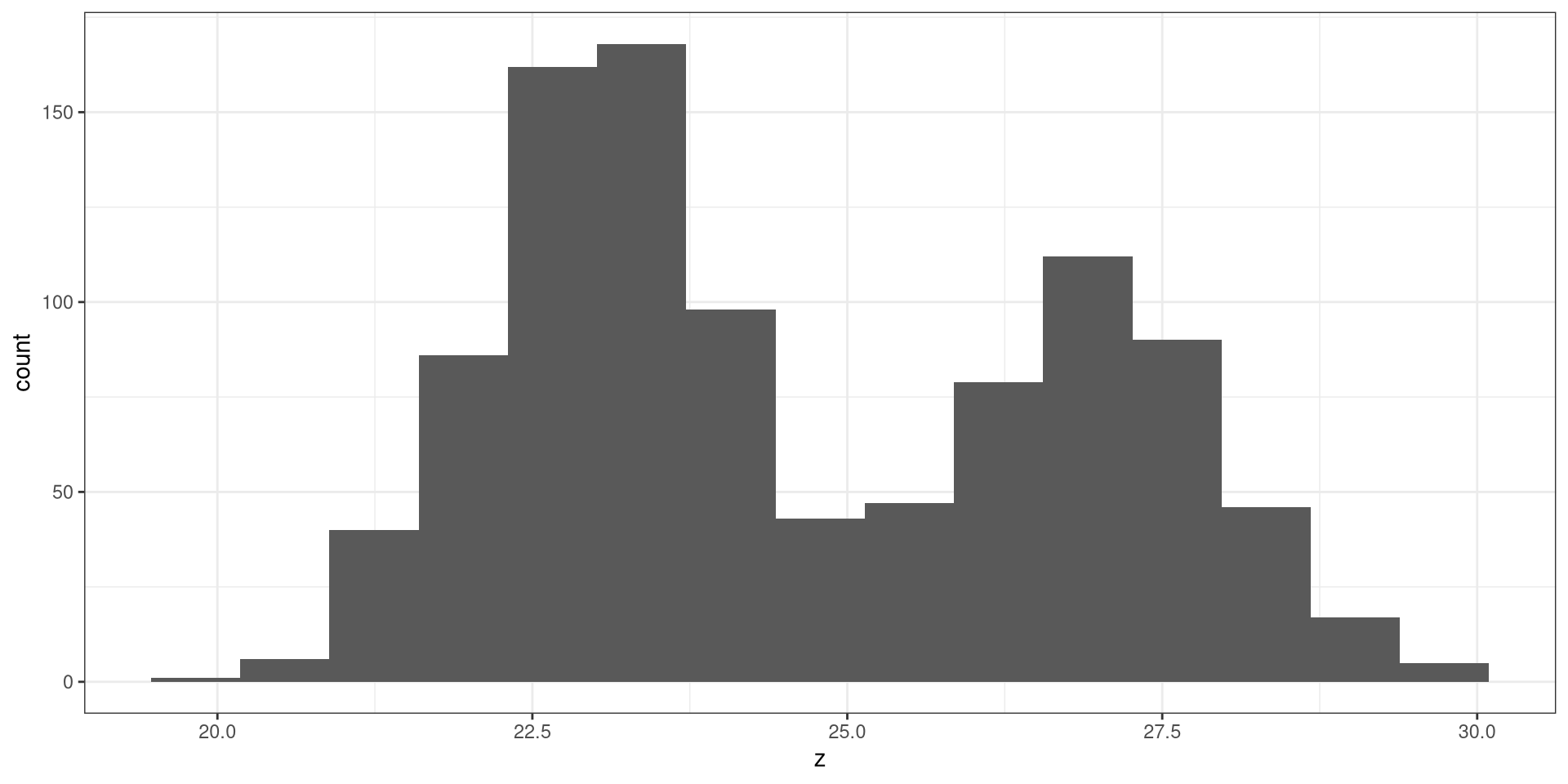

Histograms

Code
y <- rbinom(1000, 1, 0.4)
z <- (y == 0) * rnorm(1000, 23) + (y == 1) * rnorm(1000, 27)
ggplot(tibble(z), aes(z)) +
  geom_histogram(bins = 15)

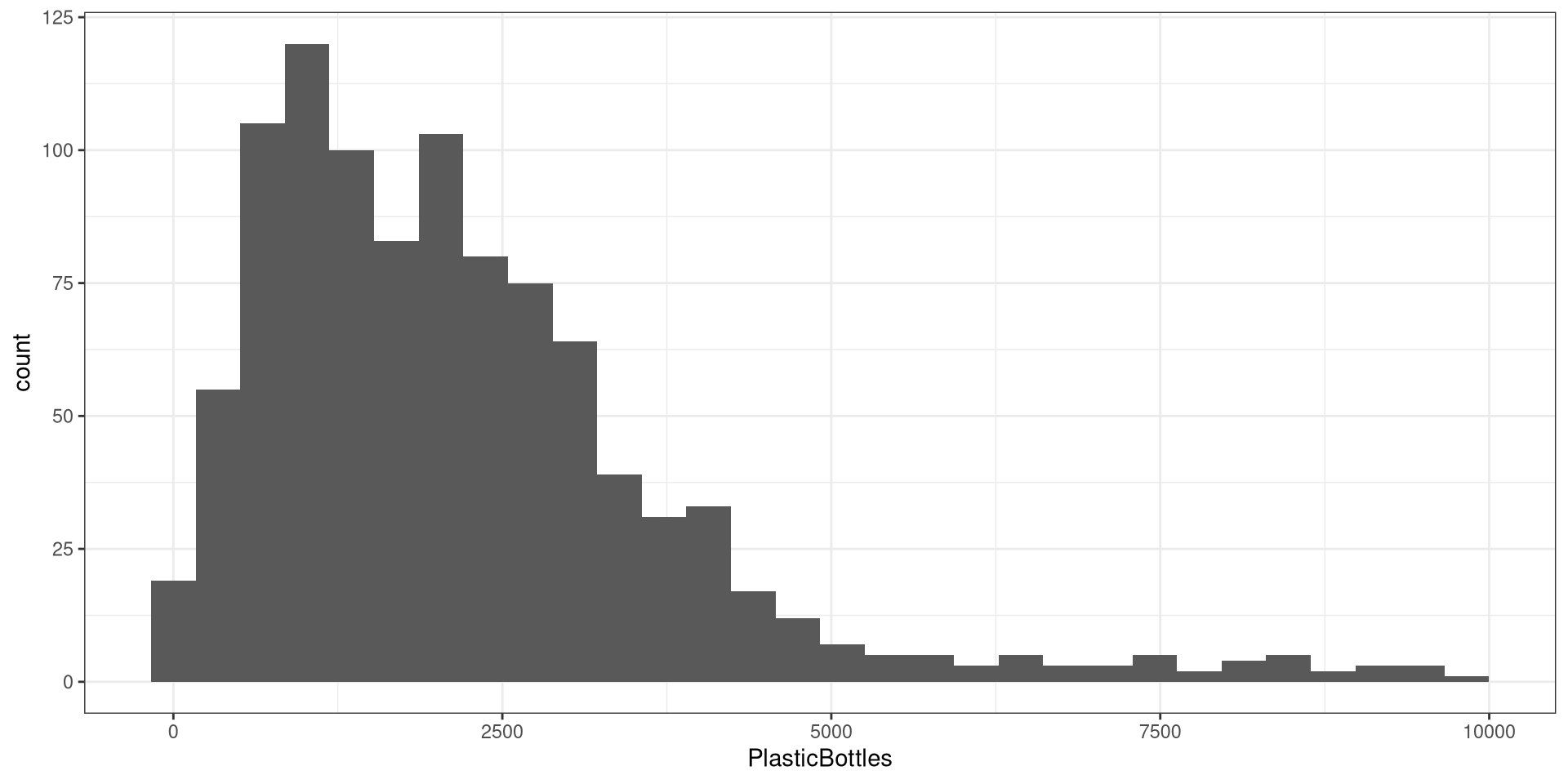

Mr. Trash Wheel

ggplot(trashwheel, aes(PlasticBottles)) +
  geom_histogram()

Box Plot

A box plot, also known as a box-and-whisker plot, is a graphical representation of the distribution and key statistical characteristics of a dataset. It provides a visual summary of the data’s central tendency, spread, and potential outliers.

Box Plot

Box Plot R Code

ggplot(DATA, aes(VARIABLE)) +
  geom_boxplot()

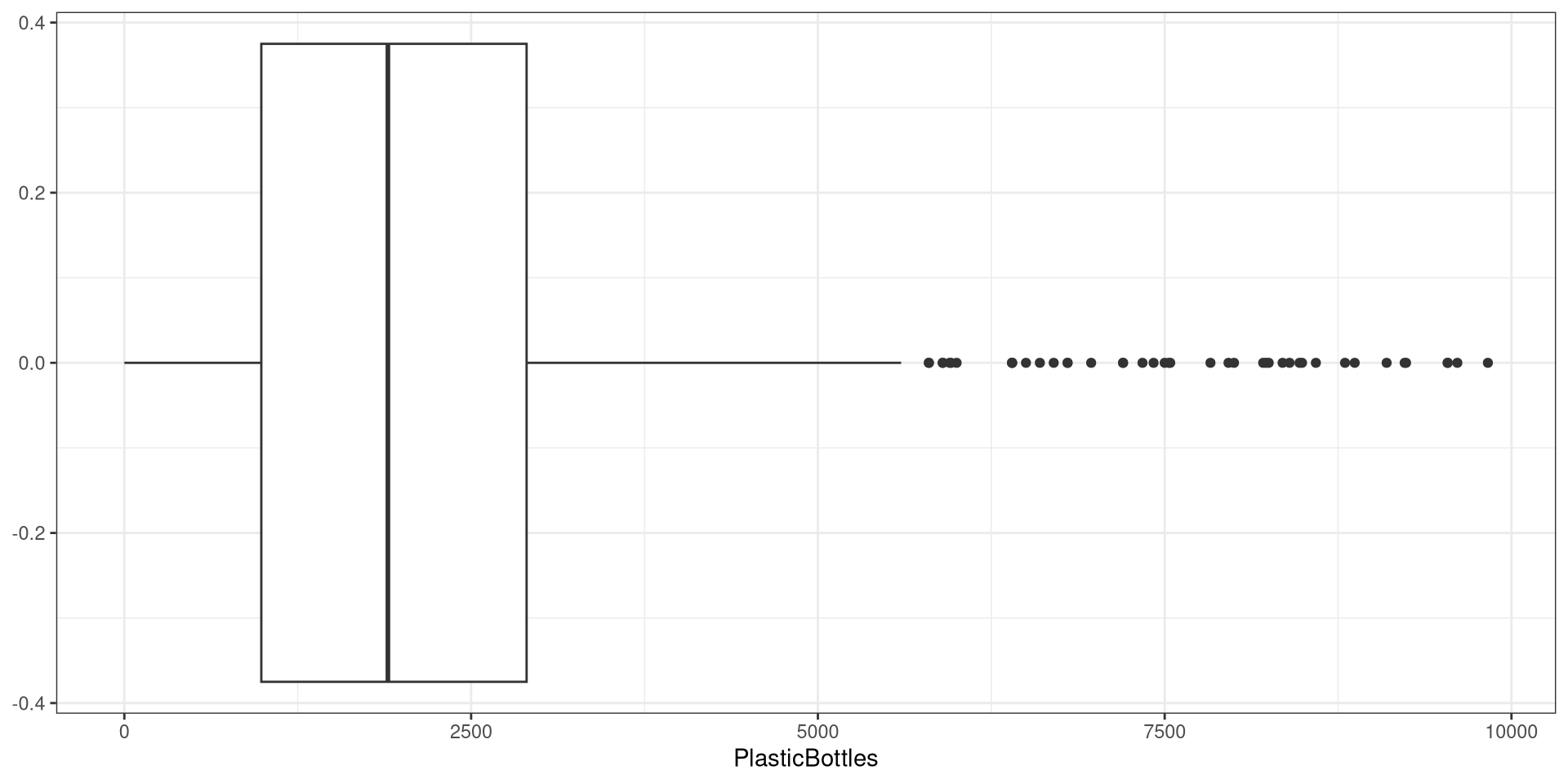

Box Plot

ggplot(trashwheel, aes(PlasticBottles)) +
  geom_boxplot()

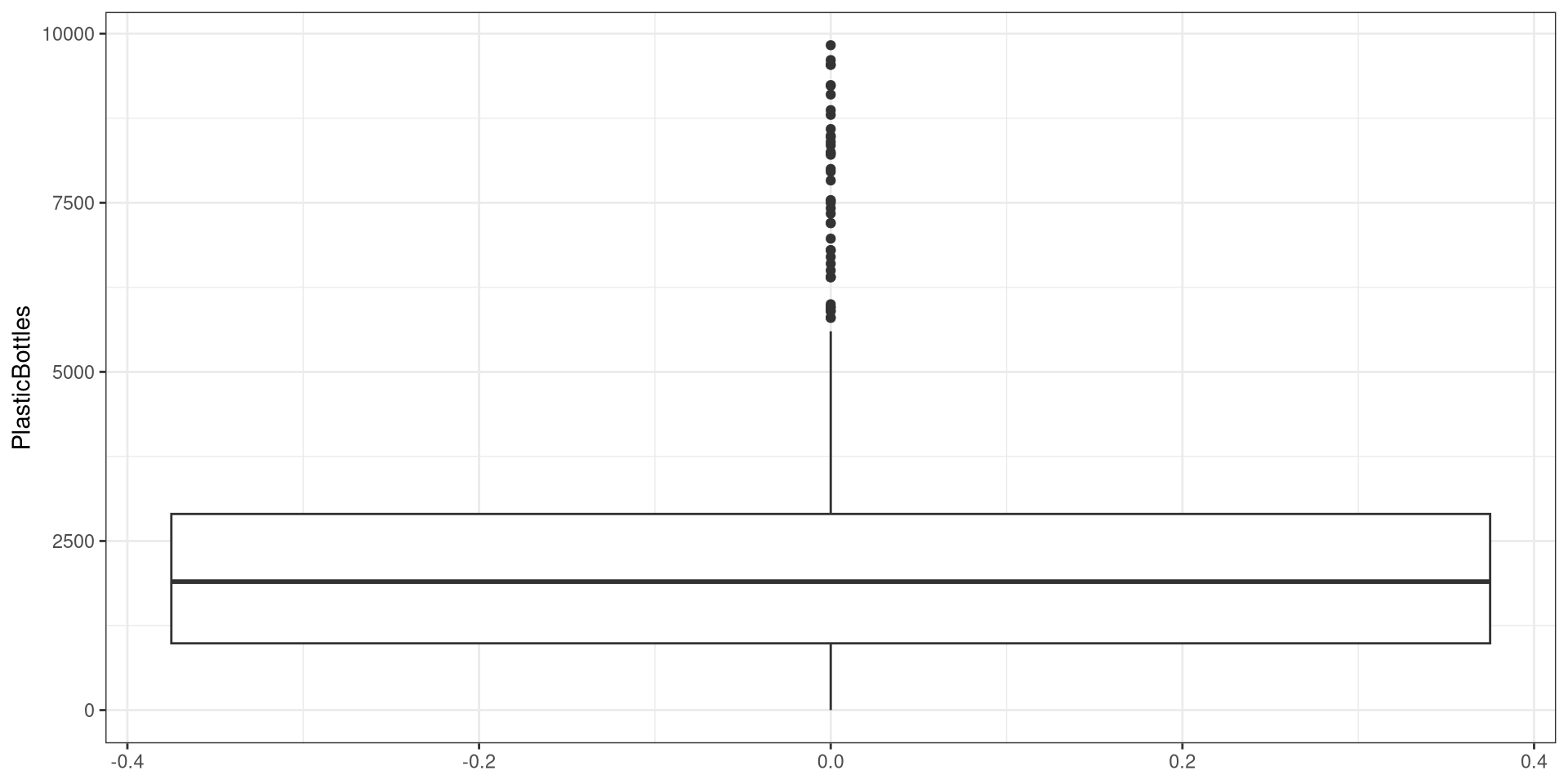

Box Plot

ggplot(trashwheel, aes(y = PlasticBottles)) +
  geom_boxplot()

Dot Plots

Dot Plots are similar to histograms, but they incorporate dots to count how many data points fall within bins.

Dot Plots in R

ggplot(DATA, aes(VARIABLE)) +
  geom_dotplot(binwidth = X)

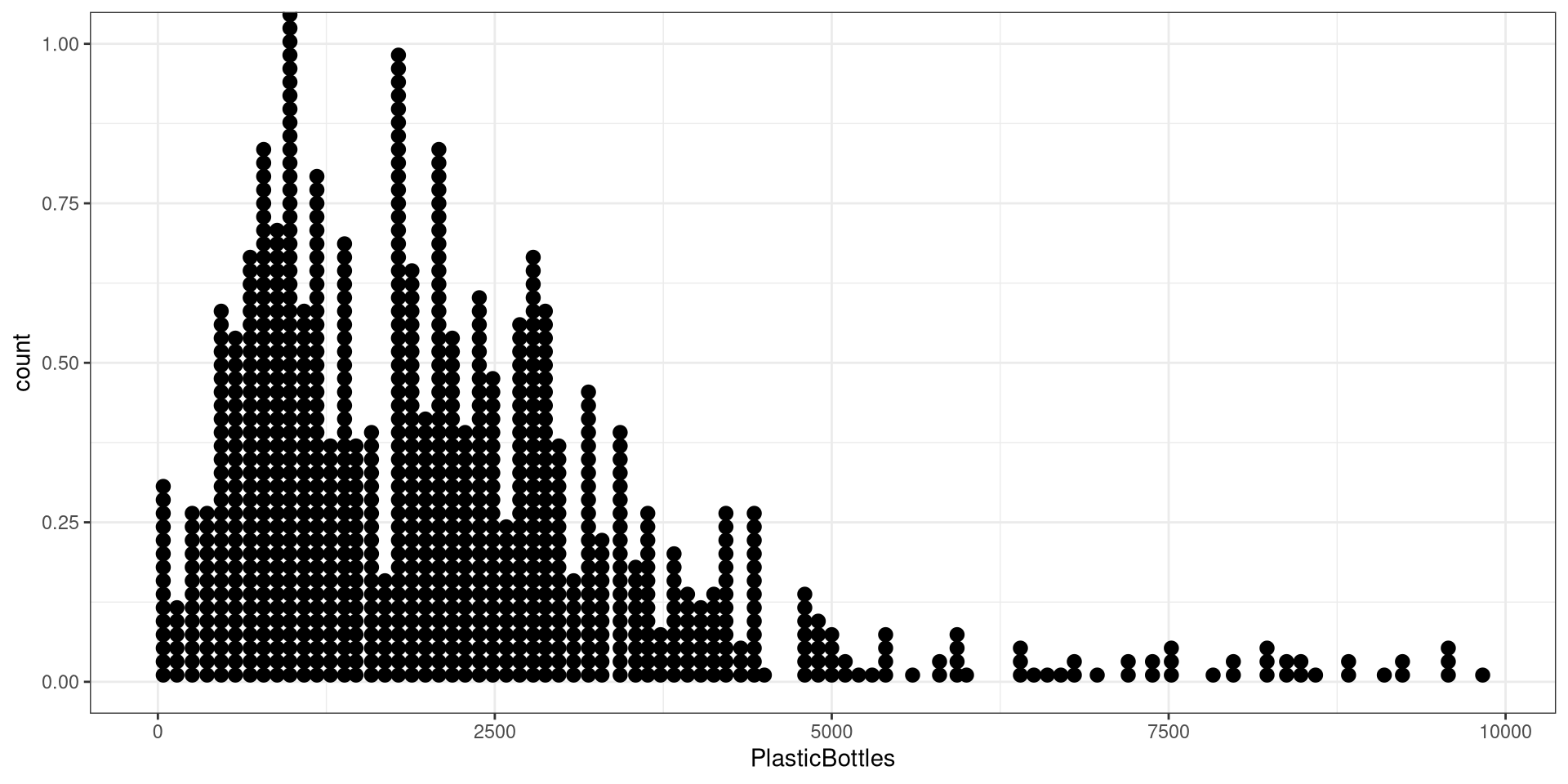

Dot Plots

Code
ggplot(trashwheel, aes(PlasticBottles)) +
  geom_dotplot(binwidth = 100)

Transformed Data

  • Summary Statistics

  • Numerical Statistics in R

  • Data Visualization

  • Transformed Data

  • Scatter Plots

Transformed Data

When working with skewed data, it may be beneficial to transform the data to identify trends.

  • \(Y = \ln(X)\)
  • \(Y = \frac{1}{X}\)
  • \(Y = \sqrt X\)

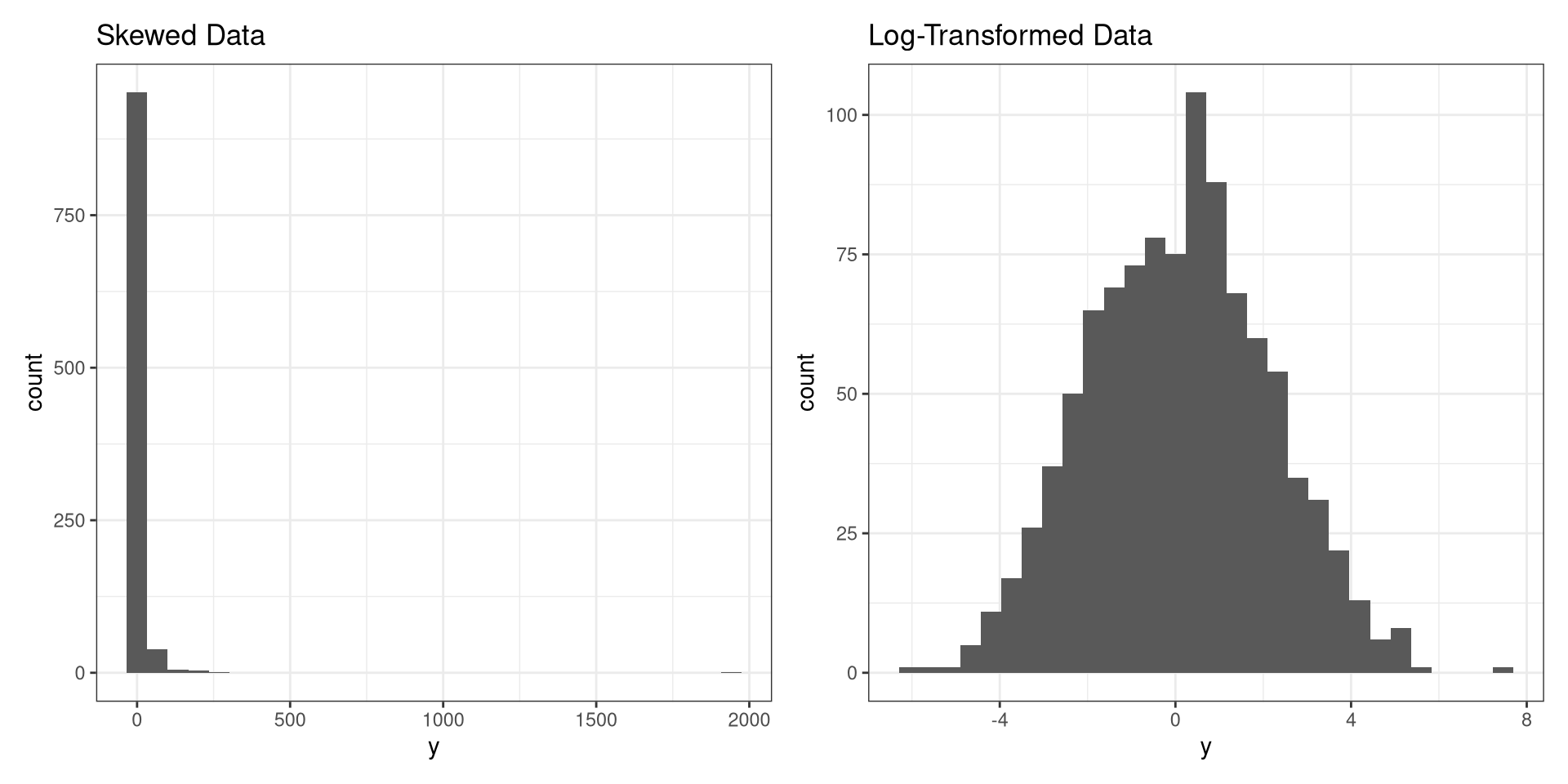

Example

Code
library(patchwork)
y <- rlnorm(1000, mean = 0, sd = 2)
ly <- log(y)

p1 <- ggplot(tibble(y), aes(y)) +
  geom_histogram() +
  ggtitle("Skewed Data")
p2 <- ggplot(tibble(y = ly), aes(y)) +
  geom_histogram() +
  ggtitle("Log-Transformed Data")

p1 + p2

Scatter Plots

  • Summary Statistics

  • Numerical Statistics in R

  • Data Visualization

  • Transformed Data

  • Scatter Plots

Scatter Plots

Scatter plots demonstrate how two variables behave with each other. They can tell you any postive or negative trends, if they exist, with the combination of the plots.

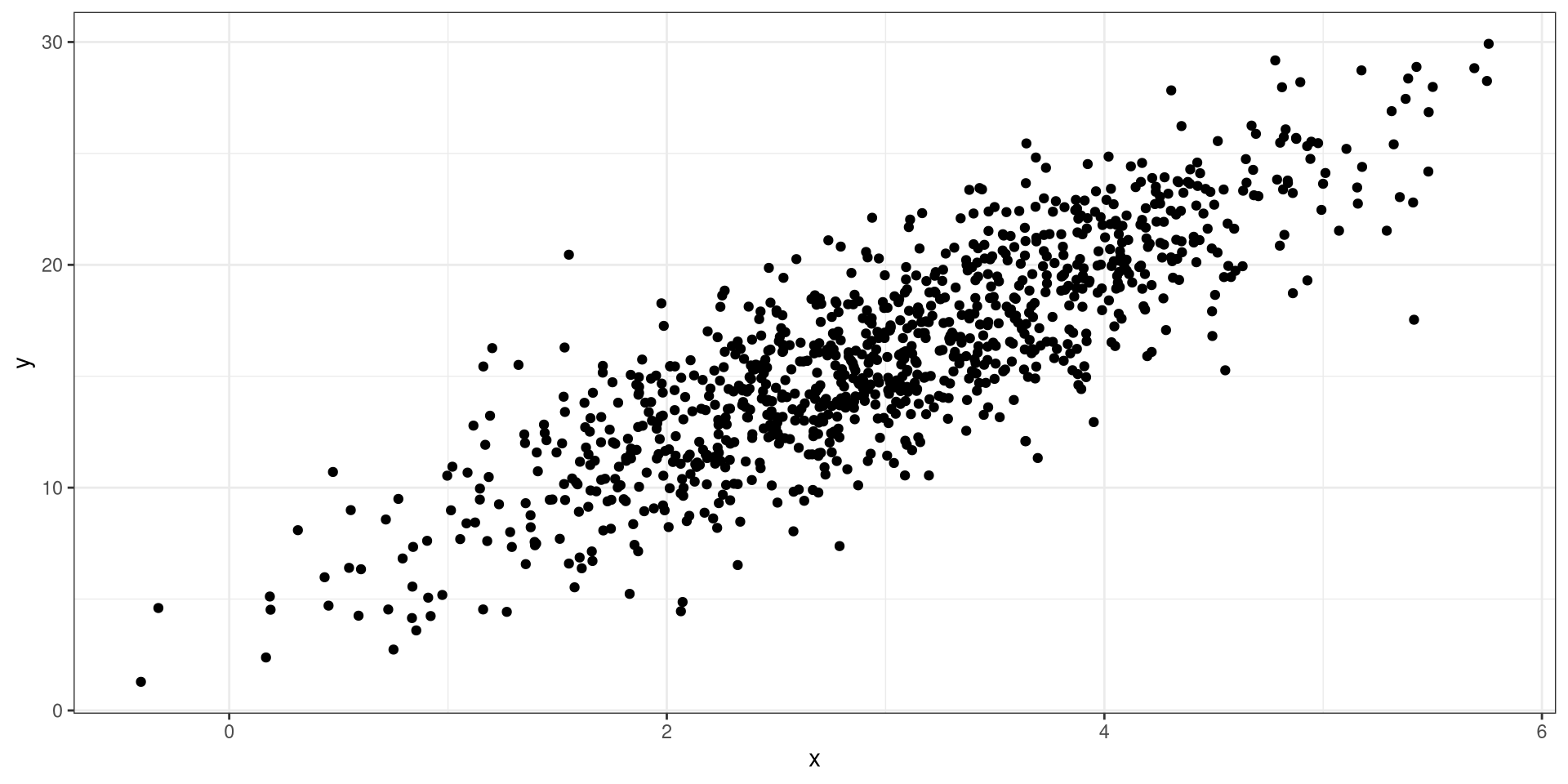

Positive Relationship

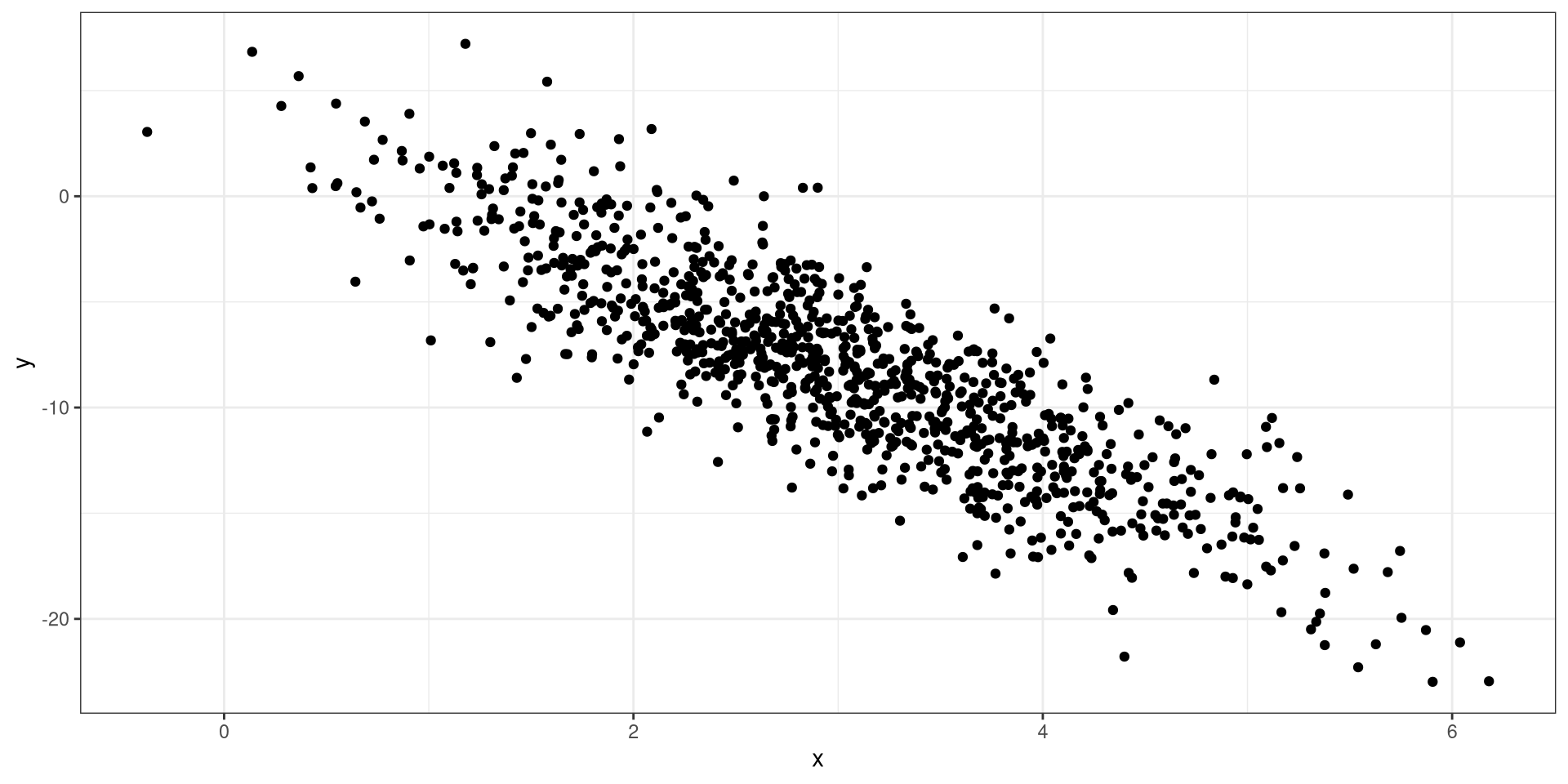

Negative Relationship

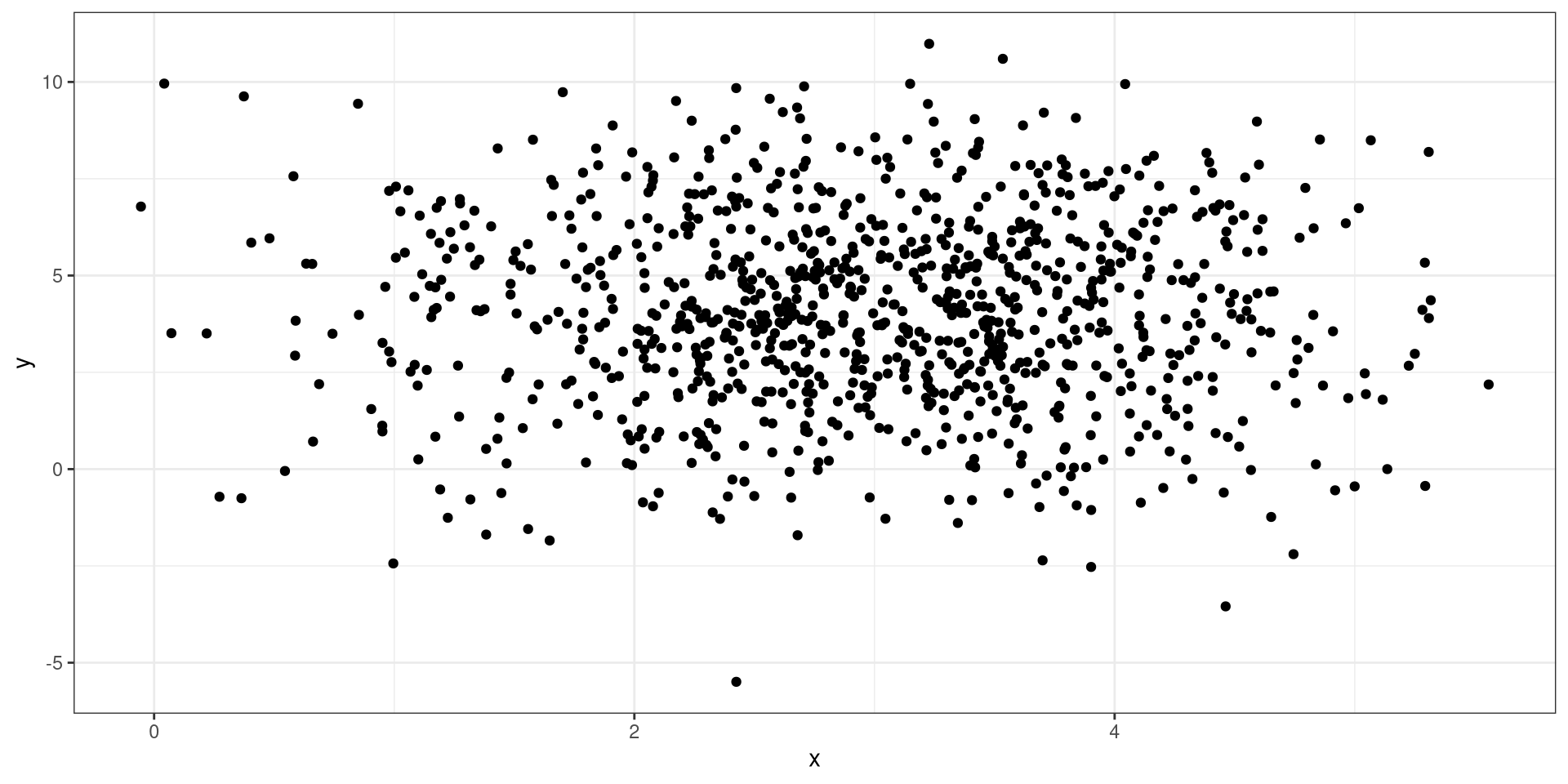

No Relationship

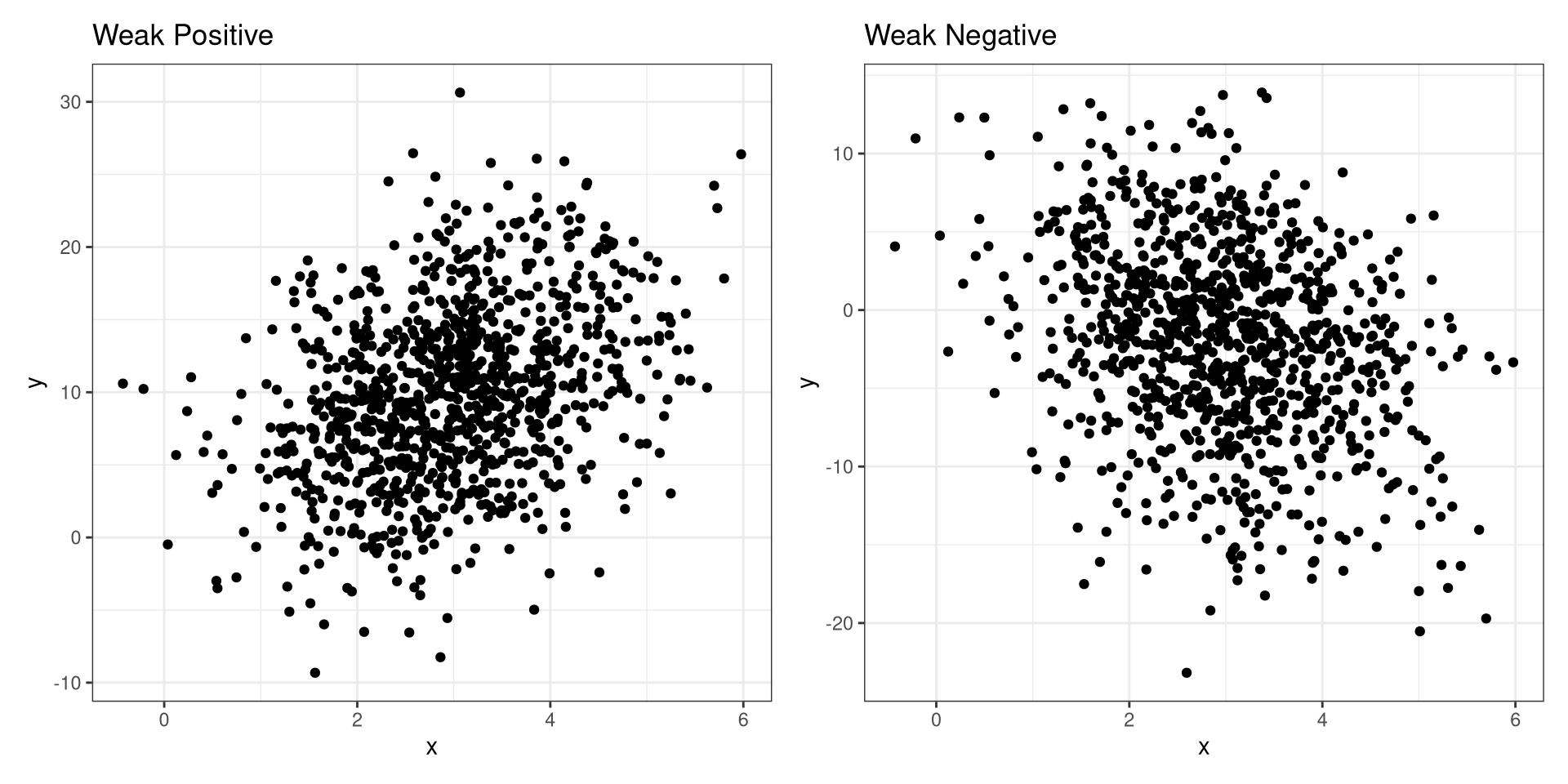

Weak Positive or Negative Relationship

Scatter Plots in R

ggplot(DATA, aes(x = VAR1, y = VAR2)) +
  geom_point()

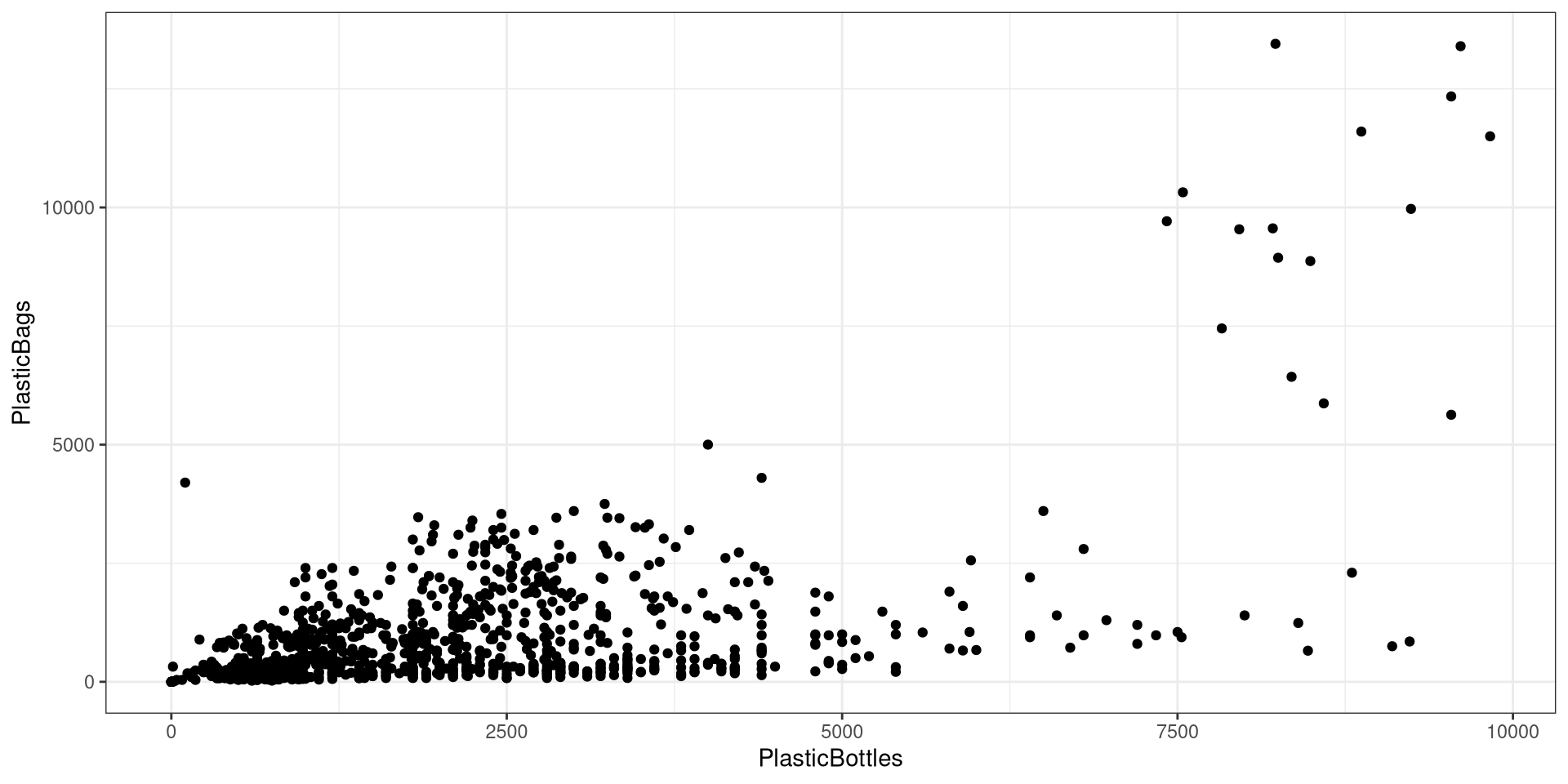

Mr. Trash Wheel

ggplot(trashwheel, aes(PlasticBottles, PlasticBags)) +
  geom_point()

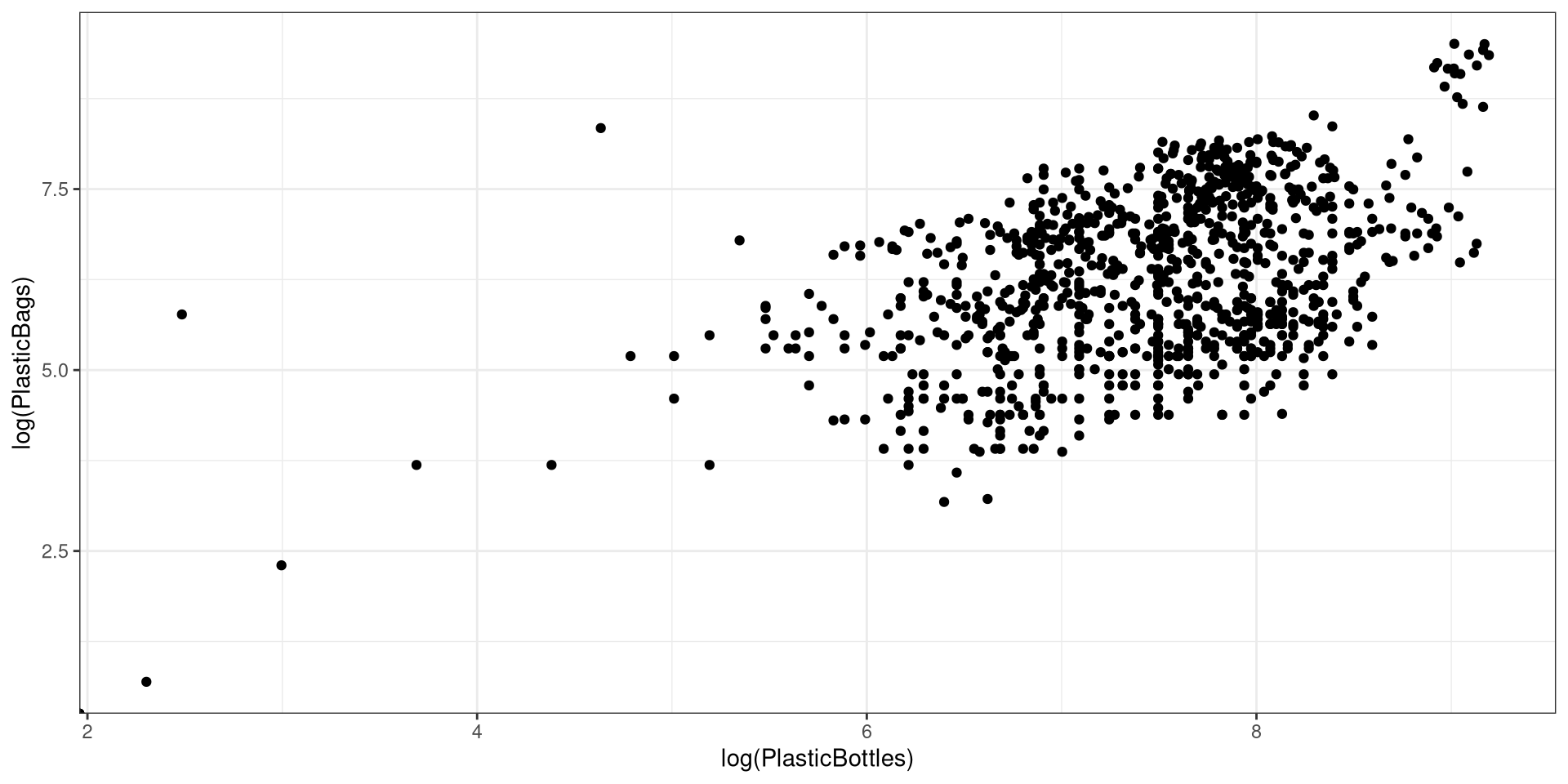

Transformed Data

ggplot(trashwheel, aes(log(PlasticBottles), log(PlasticBags))) +
  geom_point()
